Solar Northern Rivers: practical advice on panels, inverters, batteries and roof design

Solar works well in the Northern Rivers. You’ll get the best results by designing for your roof, your power use, and local network rules (not by squeezing on the most panels).

This guide covers the practical checks to make before you accept a quote.

What’s different about solar in the Northern Rivers?

Northern Rivers homes often have older roofs, tricky rooflines, tall trees, and fast-changing weather. It’s common to see older tin roofs, hips and valleys, split-level homes, and heavy canopy that creates moving shade.

You’ll also get different conditions depending on where you live.

• Coastal areas (Byron/Ballina): more salt exposure and higher corrosion risk if cheaper fixings are used.
• Inland areas: hot and humid conditions that can shorten equipment life if it’s installed in a tight, unventilated spot.

Some areas also have export constraints. Solar can still be worth it, but the system should be designed to maximise self-consumption from day one.

Local conditions that affect performance

• Heat and humidity: hot days reduce output. Poor ventilation can shorten inverter life.
• Storms and wind-driven rain: good flashing, mounting and cable management reduce leaks and damage.
• Salt air: use quality racking and correct fasteners, and avoid dissimilar metals.
• Shade from trees: moving shade can pull down a whole string if the design isn’t right.
• Roof complexity: hips, valleys and split levels affect layout, access and cable runs.
• Grid constraints: export limits can make “biggest possible system” poor value.

If you’re comparing options like solar Byron Bay or solar Ballina, the principles are the same. Your roof, your usage, and your local network settings decide the outcome.

Step 1: Decide what you want solar to do

Pick the outcome first. It makes sizing and equipment choices much easier.

Choose your main goal

1. Lower bills
2. Backup during outages (essentials only or whole-home)
3. Off-grid independence (a different design category)

You can aim for all three, but costs rise quickly once you add batteries, backup switching, and (for off-grid) extra redundancy for long cloudy periods.

Quick self-check

• Home during the day (WFH, daytime hot water, pool timers)? Solar-only often stacks up.
• Most power use after 5 pm? Price a battery, but check load shifting first.
• Want outages covered for fridge, lights, NBN and a few power points? Ask for hybrid with essential-load backup.

Note: “battery-ready” does not always include backup wiring or an essential loads board.

More detail: Hybrid solar solutions guide for Australian homes.

Step 2: Choose a sensible system size (without guessing)

Most Northern Rivers homes land between 6.6 kW and 10 kW, but it depends on usage, roof faces, shade and export rules.

A reliable approach is to size for how you actually use power now, plus likely changes over the next few years.

kW vs kWh (the common confusion)

• System size (kW): peak panel output under test conditions.
• Energy use (kWh): how much energy you use over time (day/month/quarter).

What to check before you pick a size

• Last 12 months of bills (average kWh/day, plus summer vs winter)
• Big loads and when they run (pool pump, hot water, air con, EV)
• Roof faces (north/east/west), tilt, and shade across the day (including winter)
• Roof limits (skylights, vents, valleys, hips, chimneys, safe access paths)
• Likely export limits and DNSP connection rules

Northern Rivers patterns that change sizing

• Work from home/daytime occupancy: solar-only is often better value.
• Pools: great match if the pump runs in solar hours (a timer change can beat extra panels).
• Ducted air con: solar offsets daytime cooling well; evenings may still import without storage.
• Hot water upgrades: heat pumps or timed electric hot water can soak up daytime solar.
• EV charging: daytime charging can justify a larger array; night charging changes the battery conversation.

Quick sizing examples (ballpark only)

These are starting points. Shade, roof orientation, habits and export limits can shift the design.

• Couple, efficient home, low daytime loads: 5–7 kW
• Family of four, mixed use: 6.6–10 kW
• Home + pool + heavier cooling or regular WFH: 8–13 kW
• Planning for EV charging (daytime preferred): 10–13+ kW (subject to roof and network rules)

Design rules that prevent regret

• Match solar to daytime use first. If the feed-in tariff is low, oversizing for export can disappoint.
• Don’t force a bigger system onto a bad layout. Shade and awkward placement reduce real-world value.
• Plan for future loads. If an EV, heat pump hot water, or ducted AC is likely, allow for it now.

If you want help turning bills into a system size, start here: https://freedomenergysolutions.com.au/solar-panels-northern-rivers/

Step 3: Panels are only half the story (roof layout matters)

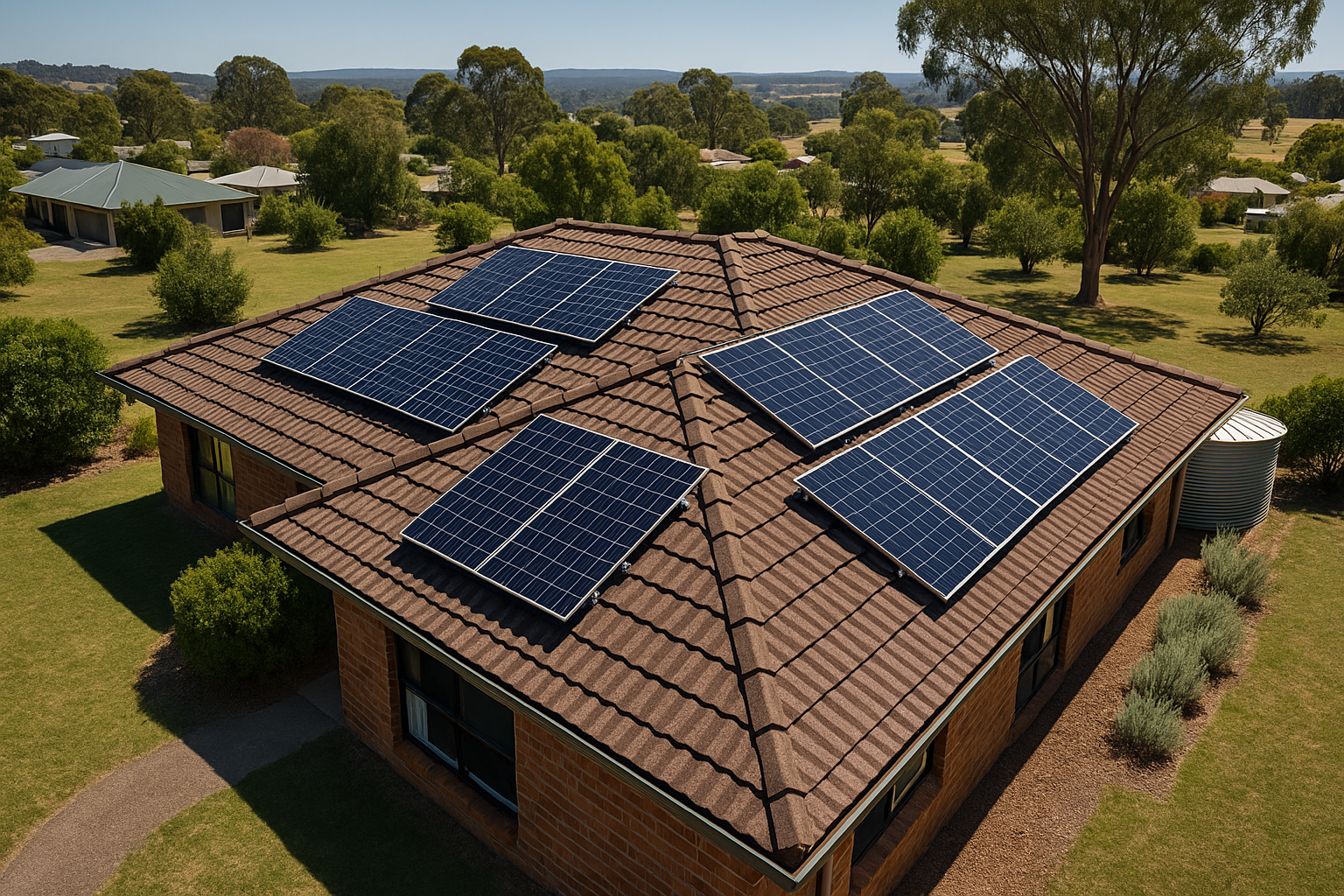

In the Northern Rivers, layout and shade management often matter more than chasing the “highest efficiency” panel.

A good array produces reliably through the day and stays easy to service.

What usually makes the biggest difference

• Smart placement across roof faces
• Shade-aware design (without overcomplicating it)
• Correct stringing to suit the inverter’s operating range
• Safe access paths and sensible clearances

Orientation and split arrays (north/east/west)

• North-facing: usually best yearly yield.
• East/west split: often suits real household use by extending production into mornings and late afternoons.
• Low tilt roofs: can collect leaves and debris, especially under trees.

Shade: what to ask your installer

Moving tree shade is common under canopy.

Ask:

• When does shade hit (morning, midday, afternoon, winter only)?
• Will shade on one section drag down the whole array?
• Should the array be split across roof faces?
• Are optimisers or microinverters needed only where shade actually hits?

Sometimes the best fix is selective pruning (where allowed) plus good string design. Sometimes it’s a smaller, cleaner array that performs more consistently.

Roof type notes (practical)

• Older tin/Colorbond: check condition first. If reroofing is likely soon, coordinate before installing panels.
• Tiled roofs: quality hooks, careful handling and proper flashing reduce cracked tiles and leaks.
• Hips/valleys/multi-plane roofs: smaller panel groups are fine, but string lengths and MPPT matching must be designed properly.
• Split-level homes: plan cable runs and inverter location to avoid exposed conduit across visible areas.

Clearances, setbacks and access (high level)

A good quote should include a basic layout and explain any compromises.

Common checks include:

• Setbacks from edges, ridges and valleys (as required)
• Fire and safety clearances
• Walkways or service access so future work doesn’t require stepping over panels

Coastal vs inland: why hardware and placement matter

Northern Rivers conditions can be tough on the “invisible” parts of a system.

• Near the coast (Byron/Ballina): salt exposure can corrode low-grade rails and fixings.
• Inland: heat and humidity can be hard on electronics if airflow is poor.

If you’re comparing quotes, don’t only compare panel brand and kW size. Check racking, fixings and where the inverter will be mounted.

Storm season resilience (practical, not panic)

A well-installed system should handle normal local weather. The goal is to avoid common installation issues.

Focus on:

• Cable management: secured, UV-rated, not rubbing on sharp edges, not sitting in water traps.
• Mounting and penetrations: quality racking, correct torque, proper sealing/flashing.
• After big storms: do a ground-level visual check only.

If anything looks off, book an inspection rather than getting on the roof.

Solar design ideas for 2025–2026

• Split arrays east/west to stretch production
• Avoid packing panels tight to valleys and ridges where debris collects
• Keep a clean service path
• Use shade-aware design only where needed
• Plan for future loads (EV charger, heat pump hot water, induction, workshop)

Panel reference: REC TwinPeak 5 Black panel guide

Step 4: Solar inverters explained (and how to pick one)

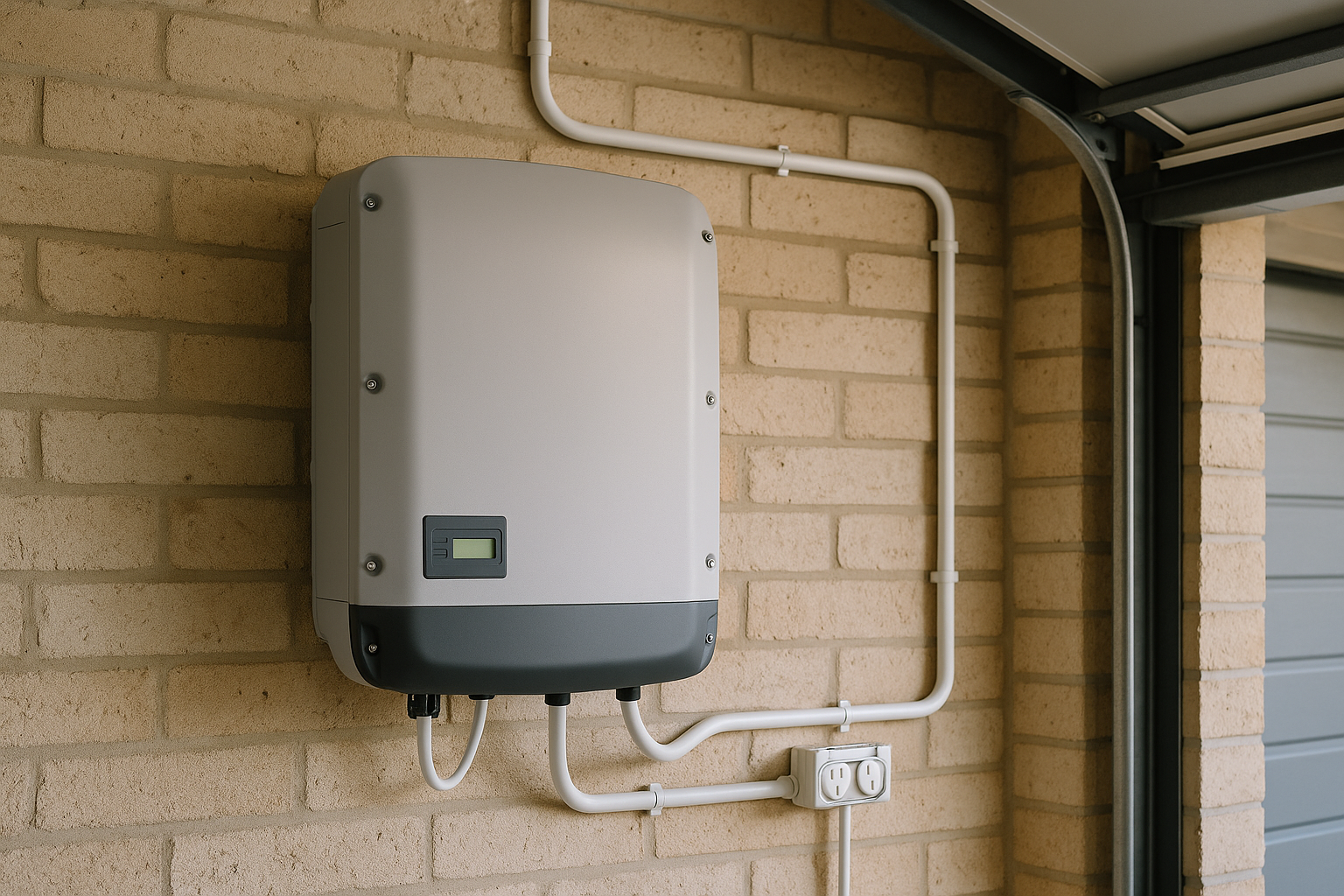

Inverter placement and tidy cabling matter for heat and long-term reliability.

The inverter is the workhorse. It turns DC from panels into AC your home uses.

In Northern Rivers conditions, reliability often comes down to placement, ventilation and a tidy, serviceable install.

String vs hybrid vs microinverters

• String inverter: suits many low-shade roofs and is good value.
• Hybrid inverter: designed to work with a compatible battery (now or later).
• Microinverters: one per panel; useful for complex roofs, multiple orientations, or tricky shade.

Microinverters and optimisers can help with mixed orientations and shade patterns. They can’t fix a roof section that’s heavily shaded most of winter.

Single-phase vs three-phase (why it matters)

• Single-phase: common, but inverter size and export settings can be more limiting.
• Three-phase: often gives more flexibility for larger systems (still subject to network rules).

If you’re unsure, check your switchboard or ask your installer before choosing inverter size.

Inverter checklist (Australia)

• Is the home single-phase or three-phase?
• Is inverter sizing right for the array and any export limits?
• What’s the warranty, and who supports it in Australia?
• Does monitoring show solar, house load and export (not only generation)?
• If adding a battery later, what’s compatible in practice?
• Will it be installed in a cool, shaded, ventilated spot?

Where Fronius often fits locally

A Fronius solar inverter is common for grid-connected homes that want strong monitoring and established support.

It may not be the best fit if you need specific backup functions, you’re designing around a particular battery ecosystem, or your roof suits microinverters better.

Alternatives (including Sungrow)

A Sungrow inverter is often chosen for strong value and wide use in Australia. Check the exact model, warranty terms and local support.

Step 5: Batteries, backup, and off-grid reality checks

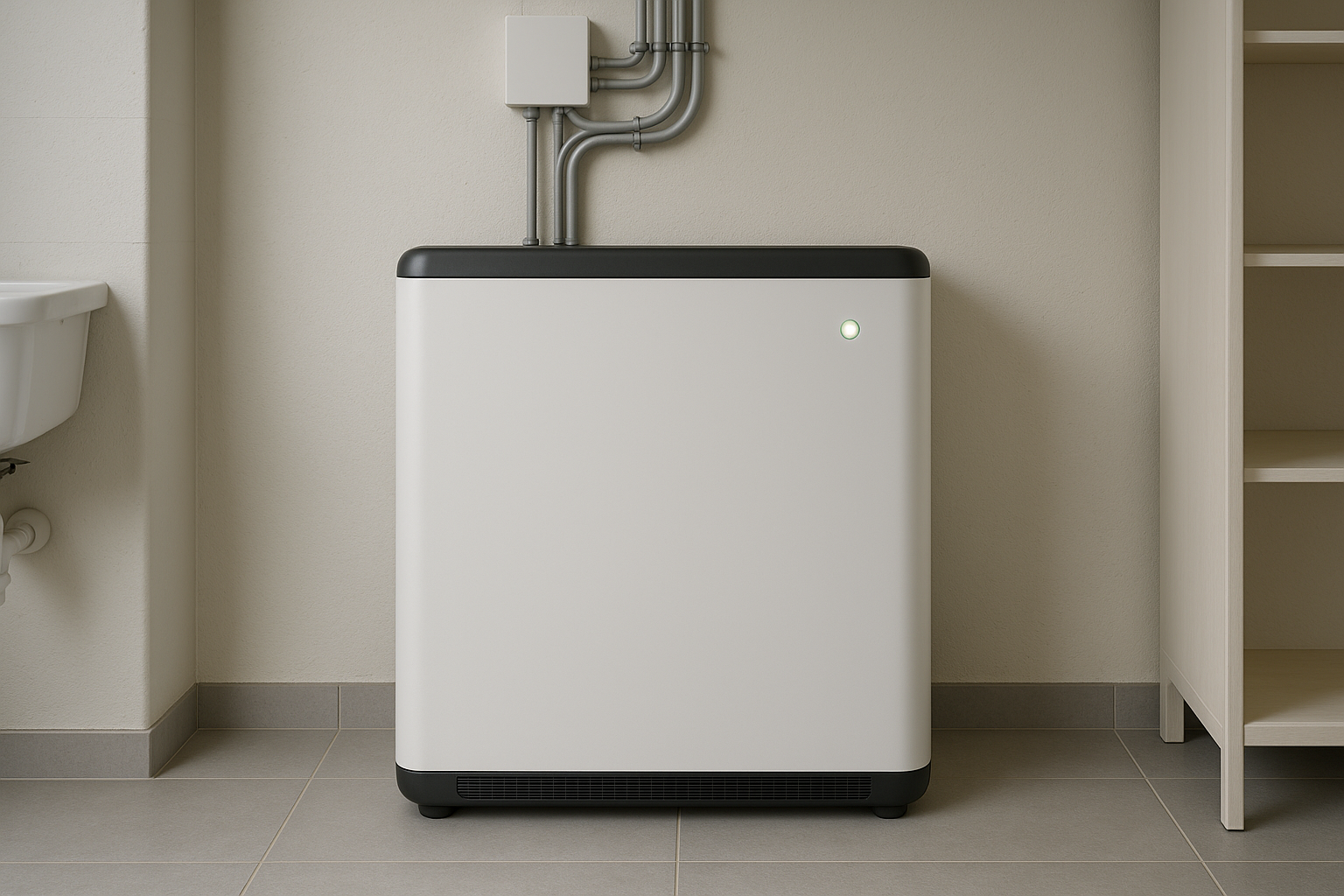

Good layout is about performance, safety clearances, and service access.

A battery can do two jobs. Know which one you’re paying for.

What a battery can do

1. Self-consumption: store daytime solar to use at night.
2. Backup: run selected circuits during outages (only if designed for backup).

Battery-ready design (so you don’t pay twice)

If you’re not buying a battery yet, plan for it now.

• Choose a clear inverter path (hybrid, or a compatible AC-coupled option)
• Allow switchboard space and sensible cable routes
• Set up monitoring/meters so you can measure self-consumption later

If you want backup, confirm what extra hardware and wiring is included. Ask exactly which circuits are backed up and what isn’t.

AC-coupled vs DC-coupled (high level)

• DC-coupled (hybrid): often neat and efficient for new installs.
• AC-coupled: often practical for retrofits on existing solar.

The best choice depends on your current inverter, backup needs, and whether you’re replacing hardware.

Battery chemistry in plain English

• LFP: common for home batteries, known for stability and long cycle life.
• LMFP: newer variation with potential benefits (depends on brand/model).
• NMC: common in EVs and storage, higher energy density.

In practice, warranty, usable capacity, compatibility and support matter more than chemistry alone.

What battery size do you need?

Size it around what you want to run and how long you want coverage.

• List essentials (fridge, lights, NBN, a few power points)
• Decide if you also want heavier loads (kettle, microwave, select air con)
• Check night-time use in your bills or monitoring

Battery reference: sonnen battery guide for Australia

When a battery makes sense in the Northern Rivers

Batteries tend to suit households with:

• High evening usage
• Low feed-in tariff and lots of daytime export
• Real value in outage protection (medical needs, pumps, remote work)

If you can shift loads into daylight (pool timer, hot water scheduling, daytime EV charging), you may get most of the benefit without storage.

Off-grid vs hybrid vs grid-connected (simple)

• Grid-connected (solar only): best for bill reduction if you’re fine relying on the grid overnight.
• Grid-connected + battery: best for higher self-consumption and/or backup.
• Off-grid: best where grid connection is unavailable or unreliable.

Off-grid: minimum things to consider

• Autonomy days (cloudy-day coverage)
• Load management (what runs, and when)
• Backup source (often a generator)
• Protection, earthing and compliance

Off-grid design is about your worst weeks, not your best days.

More detail: Remote area solar power: what works, what fails and how to size battery backup

Step 6: Feed-in tariffs, export limits, and grid approvals in NSW

Your feed-in tariff (FIT) is what you’re paid for exported solar. FITs vary by retailer and can change.

Two rules that still hold

• If FIT is low, using solar at home is usually worth more than exporting it.
• If you export most of your solar, payback depends heavily on FITs and export limits.

Export limits and smart export settings

Some Northern Rivers areas have export constraints. A good design works with the rules.

Common approaches include:

• Prioritise self-consumption (timers for hot water and pool pumps, daytime EV charging)
• Make the system battery-ready
• Use smart/dynamic export settings where supported
• Use east/west orientation to reduce a midday peak and better match household use

If export is limited, the best answer isn’t always a smaller system. Sometimes it’s a better-shaped production curve, better load shifting, or a storage plan.

DNSP approvals (NSW)

Your installer should handle DNSP/grid connection approvals and inverter settings (including export limiting where required).

Confirm this is included in the quote and timeline.

Step 7: Rebates, STCs, and choosing a Northern Rivers installer

Good gear matters, but installation quality is what you live with.

STCs (Small-scale Technology Certificates)

Most residential solar is eligible for STCs, which usually reduce the upfront cost.

Your quote should show whether STCs are:

• Assigned to the installer as an upfront discount (common), or
• Managed another way (less common)

If STCs aren’t mentioned, ask why.

What to check with your installer

• CEC-accredited installer (and design oversight where required)
• A clear layout, not just a kW number
• Written inclusions (monitoring, consumption meter, switchboard upgrades, export limiting)
• Written confirmation of DNSP approvals and who lodges what
• Warranty handling (who you call and what happens next)
• A plan for shade, heat and inverter placement

Quote checklist (quick)

• Panel model and quantity
• Inverter model (string/hybrid/microinverters) and warranty
• Monitoring platform (solar, load, export)
• Whether the home is single-phase or three-phase
• Export constraint assumptions and smart export support (if relevant)
• What “battery-ready” means in practice
• Backup capability (essential circuits, changeover method, limitations)
• STCs clearly shown
• Roof notes (orientation, tilt, shade, access paths and clearances)

Local notes: Byron Bay, Ballina, Lismore and Tweed Heads

Local conditions change what “good design” looks like.

Solar Byron Bay

Often needs extra attention to:

• Coastal corrosion (fixings and mounting hardware)
• Tree shade and shifting shade patterns
• Neat cabling and equipment placement for looks and service access

Solar Ballina

Similar priorities, especially:

• Corrosion-resistant mounting and correct fasteners
• Inverter placement (cool, shaded, ventilated)
• Sensible spacing and roof access for maintenance (leaf litter is common under canopy)

Solar Lismore and Tweed Heads

• Lismore: many tin roofs and multi-plane layouts, so layout planning and tidy cable runs matter.
• Tweed Heads: some coastal influence, and export settings can vary by area.

Mid North Coast solar (quick comparison)

The design logic is similar: match solar to daytime load, design around shade and roof complexity, and use durable mounting with tidy workmanship.

The difference is usually the local mix of roof styles and microclimates. Coastal exposure and humid heat still matter, but shade and layouts vary suburb to suburb.

For business owners: commercial solar and 100 kW systems

Commercial solar still comes down to matching output to daytime load.

Key points:

• Three-phase supply, demand patterns and export rules matter
• Larger installs need careful switchboard, protection and compliance planning

Ask for a load-based design, not a roof-area guess.

Want a tailored solar plan for your place?

If you want clear numbers, start with your usage and roof details.

Freedom Energy Solutions can assess your bills, roof layout and local rules, then recommend a design that suits how you actually live.

Get a quote for solar in the Northern Rivers: https://freedomenergysolutions.com.au/solar-panels-northern-rivers/

When you enquire, include:

• Address (or suburb)
• Average quarterly bill or kWh/day
• Whether you want battery backup for essentials
• Planned upgrades (EV, pool, air con)

A battery can lift self-consumption and provide backup for selected circuits.

FAQ (quick answers)

What size solar system suits a typical Northern Rivers home?

Many homes land in the 6.6 kW to 10 kW range. The right size depends on your kWh/day usage, roof orientation, shade (especially under canopy), and any export constraints.

Should I get a battery with solar in the Northern Rivers?

Consider a battery if you use lots of power at night, want outage backup for essentials, or export heavily on a low FIT. If you can shift loads into daytime, solar-first often stacks up.

What’s the difference between a string inverter, a hybrid inverter and microinverters?

• String inverter: cost-effective for simple, low-shade roofs.
• Hybrid inverter: designed for a compatible battery and can support backup when designed correctly.
• Microinverters: useful for complex roofs or tricky shade, with panel-level monitoring.

What are the best solar inverters in Australia?

“Best” depends on your phase supply, shade, monitoring needs, warranty support, serviceability, and battery plans. Fronius suits many homes wanting strong monitoring and support. Sungrow can be good value depending on the model and design.

Is a Fronius solar inverter a good choice for coastal areas?

It can be. Placement (cool, shaded, ventilated) and build quality matter as much as brand. Also check mounting hardware, external fixings, cable protection and sealing.

Can I go off-grid in the Northern Rivers?

Yes, but it’s a different design category. Off-grid systems must be sized for winter conditions and usually need a backup plan (often a generator) for long cloudy periods.

Do I need approvals to connect solar to the grid in NSW?

Yes. Your installer should handle DNSP/grid connection approvals and configure the inverter to meet export requirements (including export limiting where required). Confirm this is included in your quote.

Are STCs included in solar quotes?

Most residential systems are eligible for STCs, which usually reduce upfront cost. Your quote should clearly show how STCs are applied.

How long does solar installation take in the Northern Rivers?

Most residential installs take a day. Timing can be affected by switchboard work, batteries, and meter/network steps (including DNSP approvals and export settings).

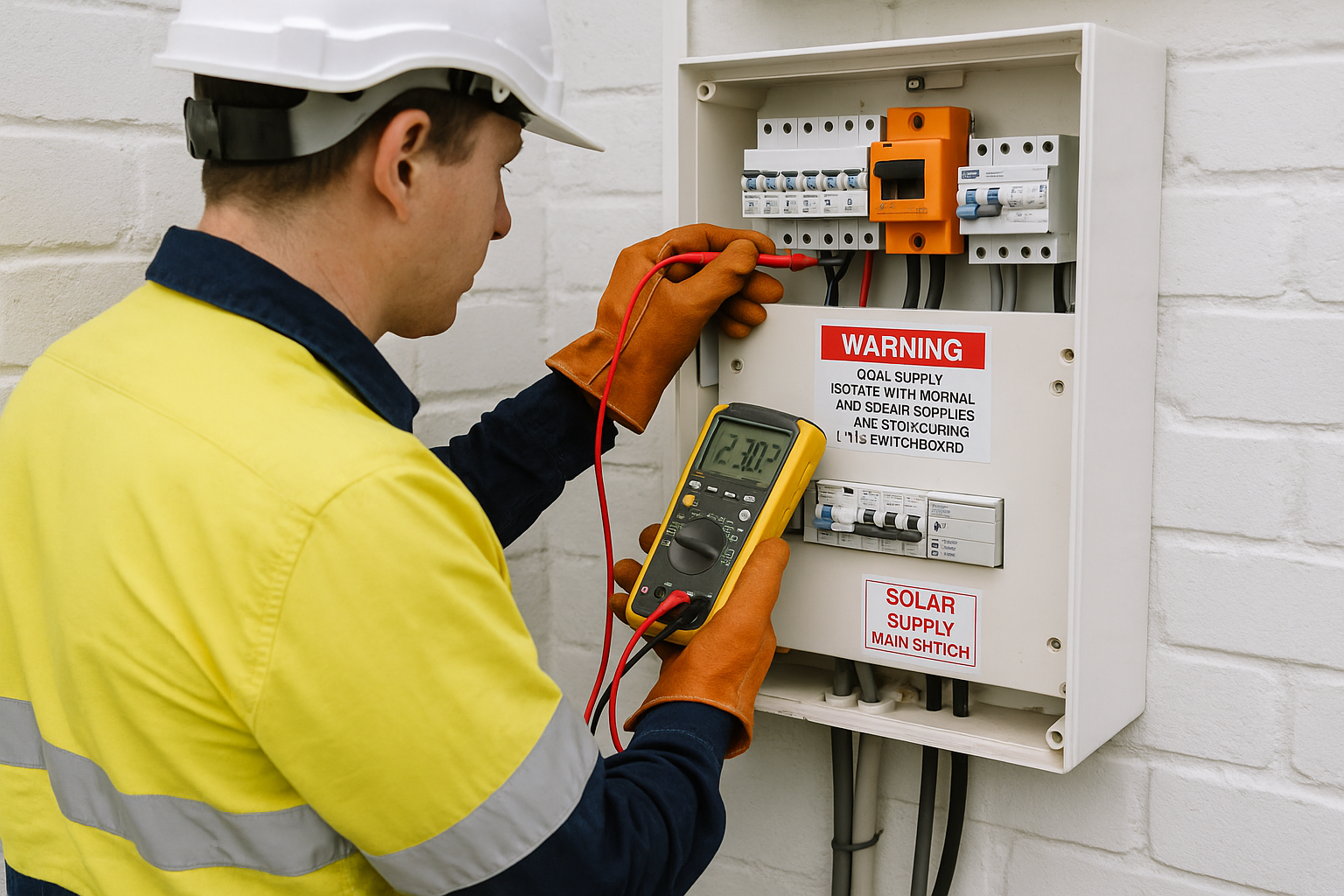

A switchboard check is a key step before you lock in your system design.
